AON7446-VB

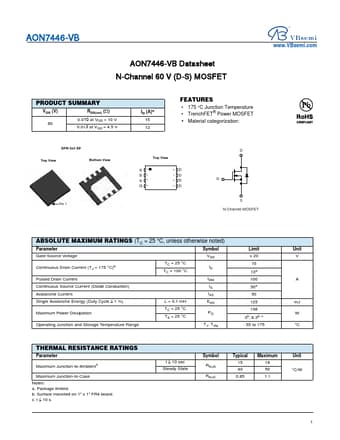

AON7446-VB Datasheet N-Channel 60 V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) ()
60
0.010 at VGS = 10 V
0.013 at VGS = 4.5 V
DFN 3x3 EP
Top View
Bottom View
Pin 1
ID (A)a 15 12
FEATURES
• 175 °C Junction Temperature • TrenchFET® Power MOSFET • Material categorization:
Top View
1
8
2
7
3
6
4
5
D
G S
N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
Parameter
Symbol
Limit
Unit
Gate-Source Voltage
VGS
± 20
V
Continuous Drain Current (TJ = 175 °C)b
TC = 25 °C TC = 100 °C
ID
15 13a
Pulsed Drain Current
IDM
100
A
Continuous Source Current (Diode Conduction)
IS
50a
Avalanche Current
IAS
50
Single Avalanche Energy (Duty Cycle 1 %)
L = 0.
