AON7400 - Field Effect Transistor

Product Overview

Alpha & Omega Semiconductors

Part number	AON7400
Manufacturer	Alpha & Omega Semiconductors
File Size	187.90 KB
Description	Field Effect Transistor
Datasheet	AON7400 Datasheet

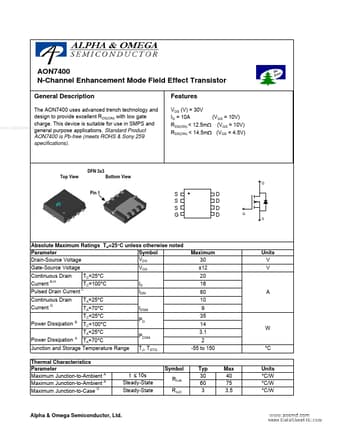

Additional preview pages of the AON7400 datasheet.

The AON7400 uses advanced trench technology and design to provide excellent R DS(ON) with low gate charge.

VDS (V) = 30V (VGS = 10V) ID = 10A RDS(ON) < 12.5mΩ (VGS = 10V) RDS(ON) < 14.5mΩ (VGS = 4.5V) DFN 3x3 Top View Bottom View D Pin 1 S S S G D D D D G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage VGS Gate-Source Voltage Continuous Drain Current B,H Pulsed Drain Current Continuous Drain Current G Power Dissipation Power Dissipation B Maximum 30 ±12 20 16 80 10 9 35 14 3.1 2 -55 to 150 Units V V TC=25°C TC=100°C C ID IDM IDSM PD PDSM TJ.
