AON7400A - 30V N-Channel MOSFET

AON7400A Description

AON7400A 30V N-Channel MOSFET General .
Product Summary. The AON7400A combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).

AON7400A Applications

* VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V)
* RoHS and Halogen-Free Compliant 100% UIS Tested 100% Rg Tested 30V 40A < 7.5mW < 10.5mW DFN 3x3 EP Top View Bottom View Pin 1 Top View S1 S2 S3 G4 8D 7D 6D 5D G Absolute Maximum Ratings TA=25°C unless otherwi

📥 Download Datasheet

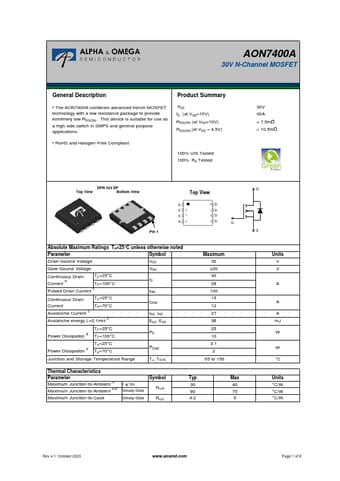

Preview of AON7400A PDF
datasheet Preview Page 2 datasheet Preview Page 3
