AON7401

30V P-Channel MOSFET

AON7401 General Description

The AON7401 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications. Product Summary VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS=-6V) -30V -29A < 14mΩ <.

AON7401 Datasheet (251.41 KB)

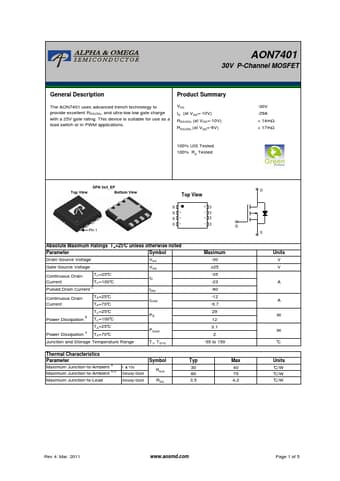

Preview of AON7401 PDF

Datasheet Details

Part number:

AON7401

Manufacturer:

Alpha & Omega Semiconductors

File Size:

251.41 KB

Description:

30v p-channel mosfet.
