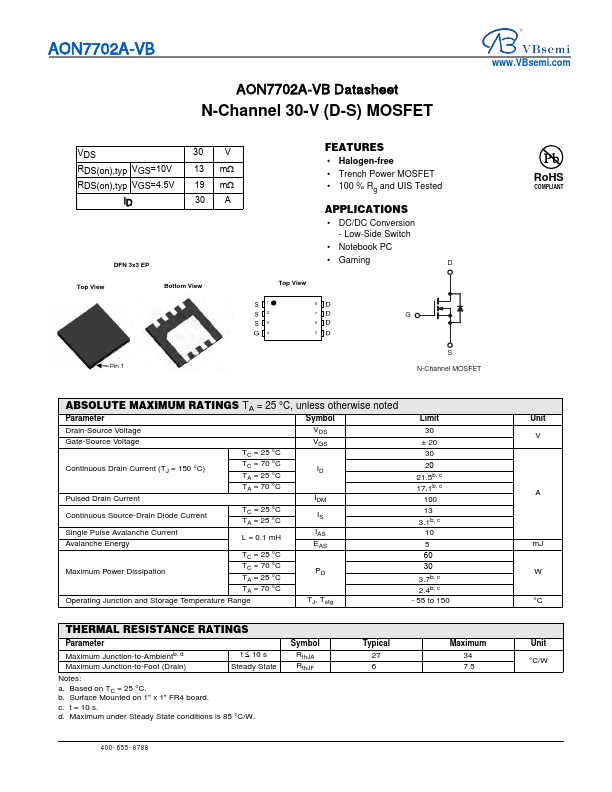

AON7702A-VB
AON7702A-VB Datasheet
N-Channel 30-V (D-S) MOSFET
www.VBsemi.com
VDS RDS(on),typ VGS=10V RDS(on),typ VGS=4.5V
ID
30 V 13 mΩ 19 mΩ 30 A
DFN 3x3 EP
Top View
Bottom View
Pin 1
FEATURES • Halogen-free • Trench Power MOSFET • 100 % Rg and UIS Tested
APPLICATIONS
• DC/DC Conversion - Low-Side Switch
• Notebook PC
• Gaming
D
Top View
1
8
2
7
G
3
6
4
5
S N-Channel MOSFET
RoHS
COMPLIANT
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Drain-Source Voltage
VDS
Gate-Source Voltage
VGS
TC = 25 °C
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
ID
TA = 70 °C
Pulsed Drain Current
IDM
Continuous Source-Drain Diode Current
TC = 25 °C TA = 25 °C
IS
Single Pulse Avalanche Current Avalanche Energy
L = 0.
AON7702A Datasheet
