AON7700 - N-Channel MOSFET

AON7700 Description

AON7700 30V N-Channel MOSFET SRFET TM General .
Product Summary SRFETTM AON7700 uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low.

AON7700 Applications

* VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 40A < 7.2mΩ < 8.6mΩ 100% UIS Tested 100% Rg Tested DFN 3x3 EP Top View Bottom View Pin 1 Top View 18 27 36 45 G D SRFETTM Soft Recovery MOSFET: Integrated Schottky Diode S Absolute Maximum Ratings TA=25°C unless otherwise

📥 Download Datasheet

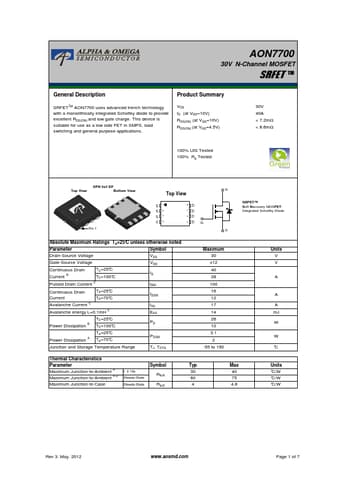

Preview of AON7700 PDF
datasheet Preview Page 2 datasheet Preview Page 3
