AON7704 Datasheet, N-channel Mosfet, Alpha & Omega Semiconductors

N-channel mosfet

📥 Download PDF (206.83 KB)

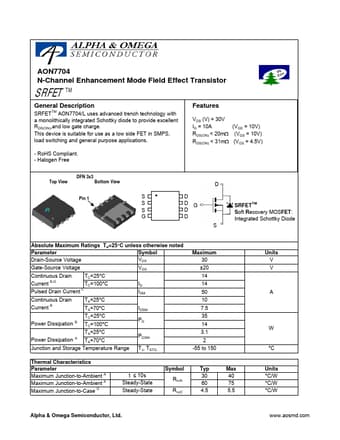

AON7704 Datasheet Preview Page 1 — Preview of AON7704 Datasheet

PDF File Details

Part number:

AON7704

Manufacturer:

Alpha & Omega Semiconductors

File Size:

206.83 KB

Download:

📄 Download the AON7704 Datasheet PDF

Description:

N-channel mosfet.
SRFETTM AON7704/L uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low gate charge.
This device is suitable for use as a low side FET in.

✔ AON7704 Features

VDS (V) = 30V ID = 10A (VGS = 10V) RDS(ON) < 20mΩ (VGS = 10V) RDS(ON) < 31mΩ (VGS = 4.5V) Top View DFN 3x3 Bottom View Pin 1 S S S G D D D D G D S SRFETTM

✔ AON7704 Application

- RoHS Compliant. - Halogen Free Features VDS (V) = 30V ID = 10A (VGS = 10V) RDS(ON) < 20mΩ (VGS = 10V
