AON7820 - Dual N-Channel 20V MOSFET

Datasheet Summary

Features

  • Trench power MOSFET.

📥 Download Datasheet

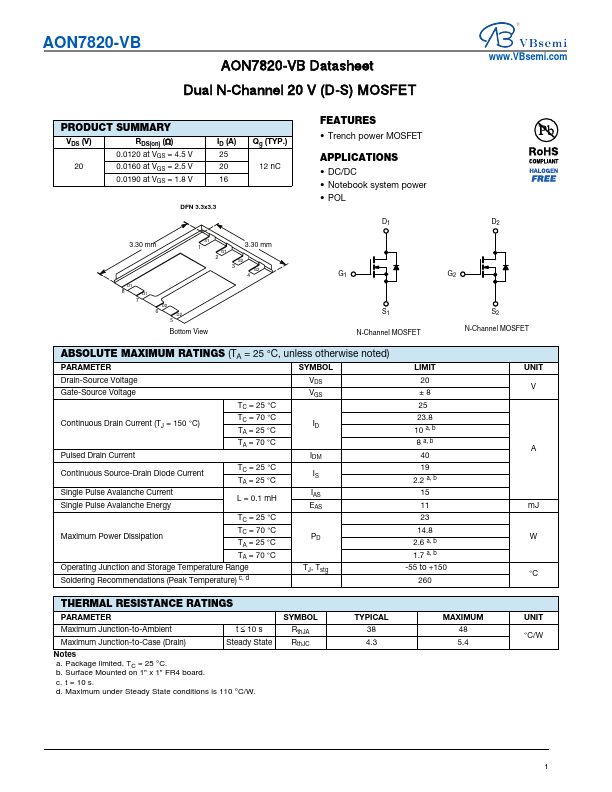

Datasheet preview – AON7820

Datasheet Details

Part number AON7820
Manufacturer VBsemi
File Size 275.74 KB
Description Dual N-Channel 20V MOSFET
Datasheet download datasheet AON7820 Datasheet

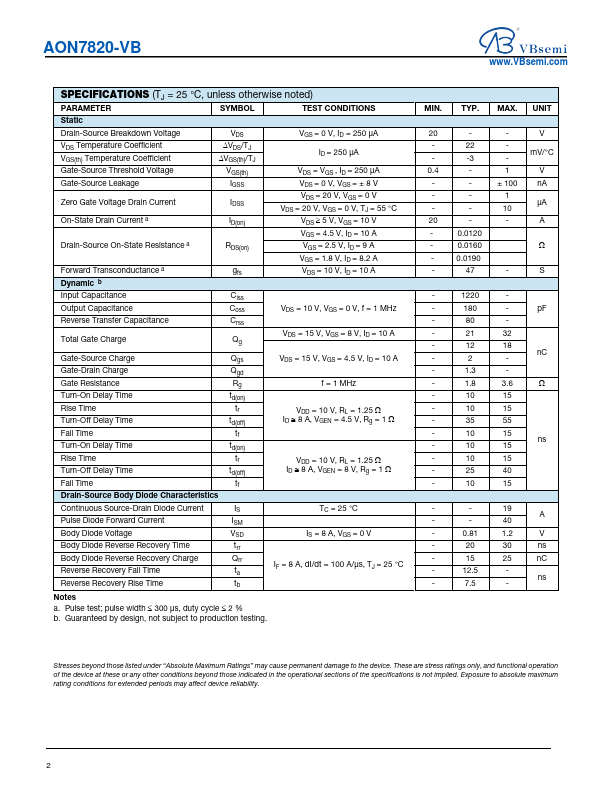

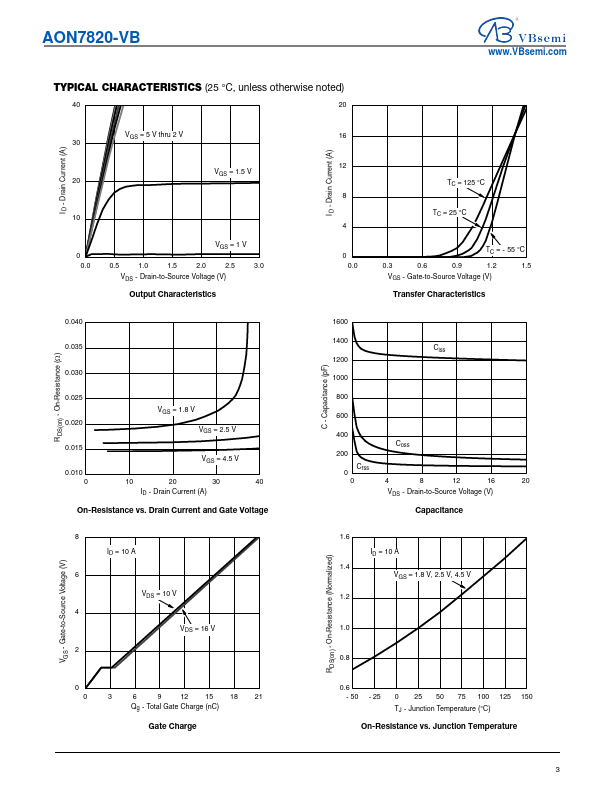

Additional preview pages of the AON7820 datasheet.

📁 Similar Datasheet

  • AON7820 - 20V Dual N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7826 - 20V Dual N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7804 - 30V Dual N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7810 - 30V Dual N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7812 - 30V Dual N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7140 - 40V N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7200 - 30V N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7202 - 30V N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7210 - 30V N-Channel MOSFET (Alpha & Omega Semiconductors)
  • AON7220 - 25V N-Channel MOSFET (Alpha & Omega Semiconductors)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text
AON7820-VB AON7820-VB Datasheet Dual N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 20 RDS(on) () 0.0120 at VGS = 4.5 V 0.0160 at VGS = 2.5 V 0.0190 at VGS = 1.8 V ID (A) 25 20 16 Qg (TYP.) 12 nC DFN 3.3x3.3 3.30 mm S1 1 G1 2 3.
