AON7826 - 20V Dual N-Channel MOSFET

AON7826 Description

AON7826 20V Dual N-Channel MOSFET General .
The AON7826 is designed to provide a high efficiency synchronous buck power stage with optimal layout and board space utilization.

AON7826 Applications

* Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS =4.5V) RDS(ON) (at VGS =2.5V) RDS(ON) (at VGS =1.8V) 100% UIS Tested 100% Rg Tested 20V 22A < 23mΩ < 26mΩ < 34mΩ < 52mΩ DFN 3x3A_Dual Top View Bottom View Pin 1 Pin 1 D1 D1 S2 G2 Top View G1 S1 D2 D2 G1 Absolute Max

📥 Download Datasheet

Preview of AON7826 PDF

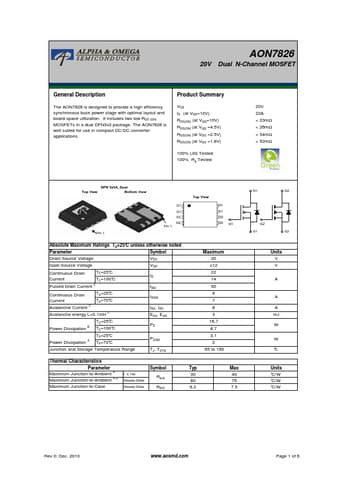

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AON7826
Manufacturer
Alpha & Omega Semiconductors
File Size
225.28 KB
Datasheet
AON7826-AlphaOmegaSemiconductors.pdf
Description
20V Dual N-Channel MOSFET
