AON7804 - 30V Dual N-Channel MOSFET

AON7804 Description

AON7804 30V Dual N-Channel MOSFET General .
The AON7804 is designed to provide a high efficiency synchronous buck power stage with optimal layout and board space utilization.

AON7804 Applications

* Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 100% UIS Tested 100% Rg Tested ESD protected 30V 22A < 21mW < 26mW DFN 3x3A_Dual Top View Bottom View Pin 1 D1 D1 S2 G2 Pin 1 Top View G1 S1 D2 G D2 Absolute Maximum Ratings TA=25°C unless otherwise noted P

📥 Download Datasheet

Preview of AON7804 PDF

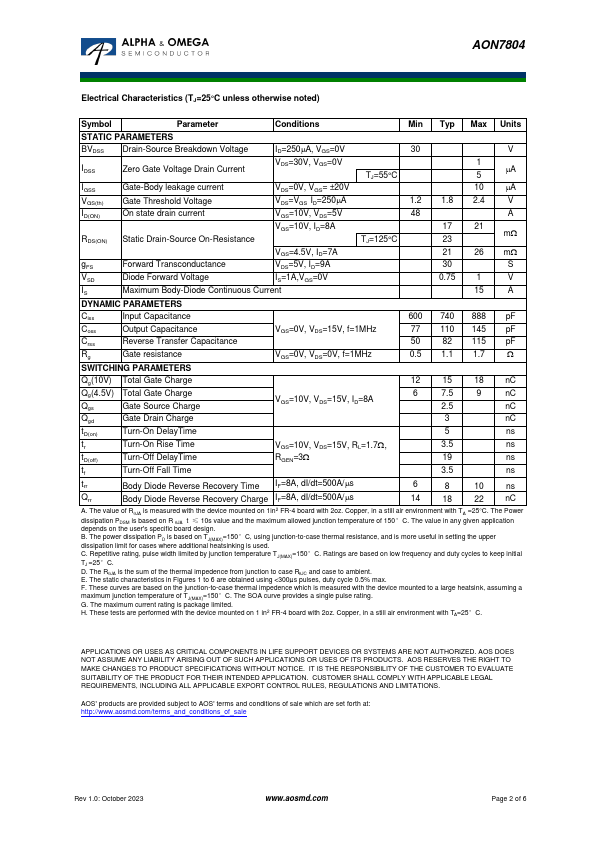

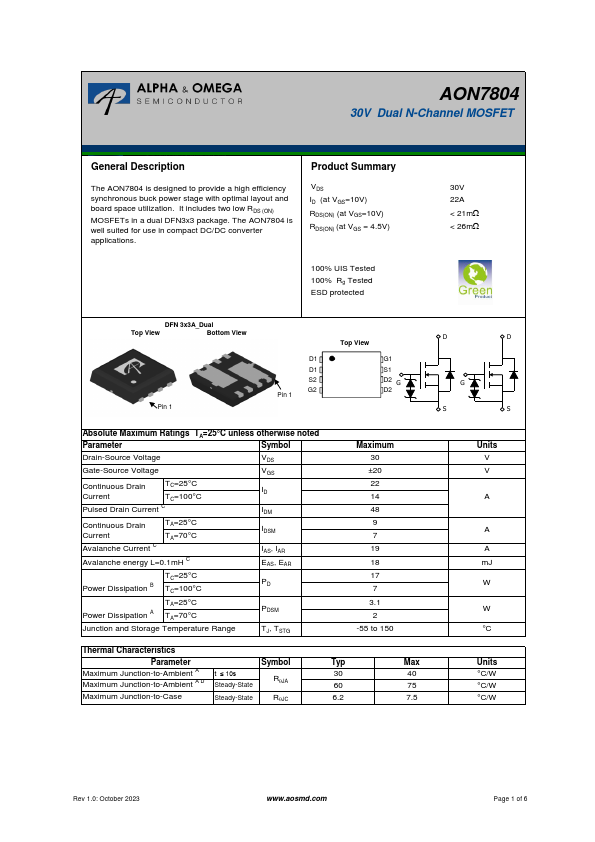

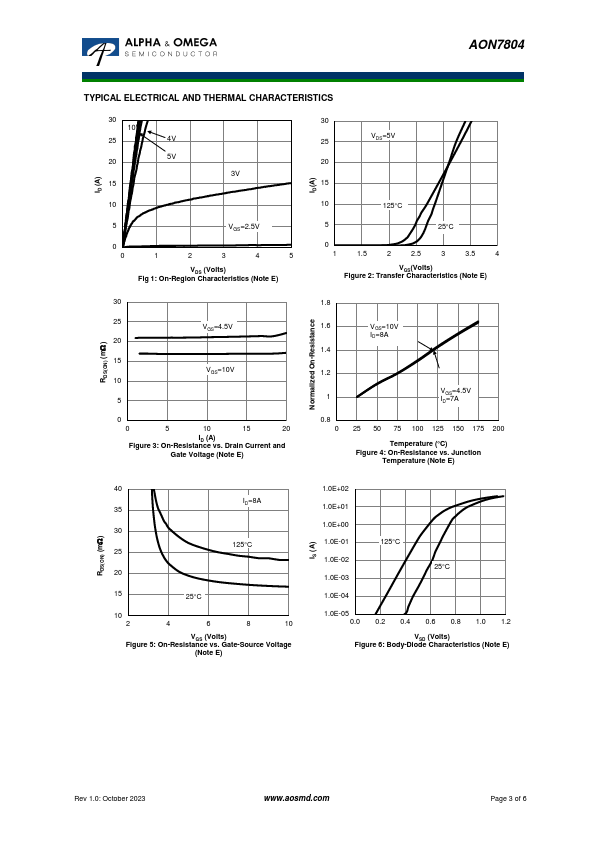

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AON7804
Manufacturer
Alpha & Omega Semiconductors
File Size
488.12 KB
Datasheet
AON7804-AlphaOmegaSemiconductors.pdf
Description
30V Dual N-Channel MOSFET
