AON7140 - 40V N-Channel MOSFET

Product Overview

📥 Download Datasheet

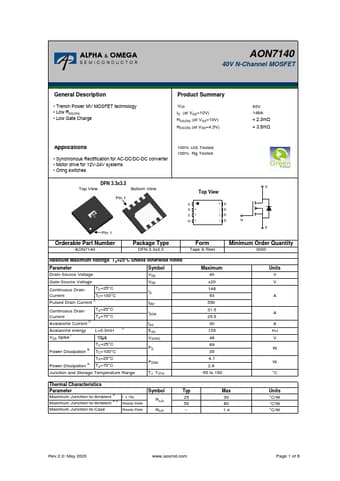

Datasheet preview – AON7140

Datasheet Details

Part number AON7140
Manufacturer Alpha & Omega Semiconductors
File Size 730.08 KB
Description 40V N-Channel MOSFET
Datasheet download datasheet AON7140 Datasheet
Additional preview pages of the AON7140 datasheet.

Product details

Description

Trench Power MV MOSFET technology Low RDS(ON) Low Gate Charge Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 40V 148A < 2.3mΩ < 3.5mΩ Applications Synchronous Rectification for AC-DC/DC-DC converter Motor drive for 12V-24V systems Oring switches 100% UIS Tested 100% Rg Tested DFN 3.3x3.3 Top View Bottom View Pin 1 Pin 1 Orderable Part Number AON7140 Package Type DFN 3.3x3.3 D Top View S1 S2 S3
