AON7210 - 30V N-Channel MOSFET

Product Overview

📥 Download Datasheet

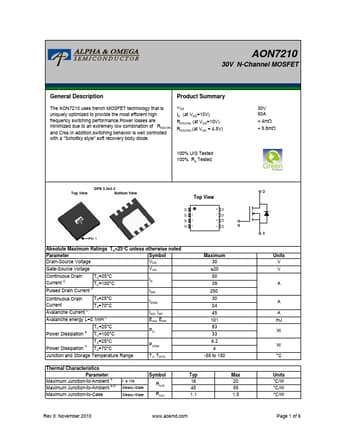

Datasheet preview – AON7210

Datasheet Details

Part number AON7210
Manufacturer Alpha & Omega Semiconductors
File Size 235.85 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet AON7210 Datasheet
Additional preview pages of the AON7210 datasheet.

Product details

Description

Product Summary The AON7210 uses trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance.Power losses are minimized due to an extremely low combination of RDS(ON) and Crss.In addition,switching behavior is well controlled with a "Schottky style" soft recovery body diode.VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 100% UIS Tested 100% Rg Tested 30V 50A < 4mΩ < 5.8mΩ DFN 3.3x3.3 Top View Bottom View Top V
