AON7230 Datasheet, Mosfet, Alpha & Omega Semiconductors

PDF File Details

Part number:

AON7230

Manufacturer:

Alpha & Omega Semiconductors

File Size:

332.64kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Trench Power MV MOSFET technology
  • Low RDS(ON)
  • Low Gate Charge
  • Logic level driven Product Sum

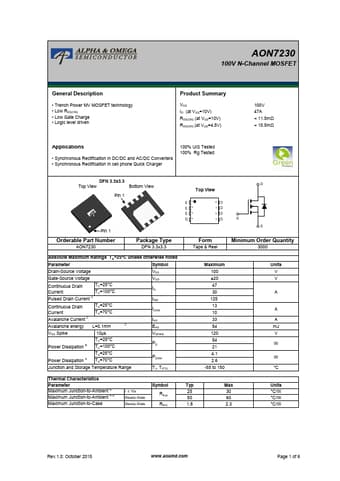

  • Datasheet Preview: AON7230 📥 Download PDF (332.64kb)
    Page 2 of AON7230 Page 3 of AON7230

    AON7230 Application

    • Applications
    • Synchronous Rectification in DC/DC and AC/DC Converters
    • Synchronous Rectification in cell phone Quick Charger 100%
