AON7820 - 20V Dual N-Channel MOSFET

AON7820 Description

AON7820 20V Dual N-Channel MOSFET General .
Product Summary The AON7820 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RSS(ON).

AON7820 Applications

* VDS IS (at VGS=4.5V) RSS(ON) (at VGS=4.5V) RSS(ON) (at VGS =3.5V) RSS(ON) (at VGS =2.5V) Typical ESD protection 20V 35A < 16mΩ < 17mΩ < 20mΩ HBM Class 2 DFN 3x3 EP Top View Bottom View Pin 1 Top View S1 G1 S2 G2 D1 D1 D2 G D2 D G S Absolute Maximum Ratings TA=25°C unless otherwise noted

📥 Download Datasheet

Preview of AON7820 PDF

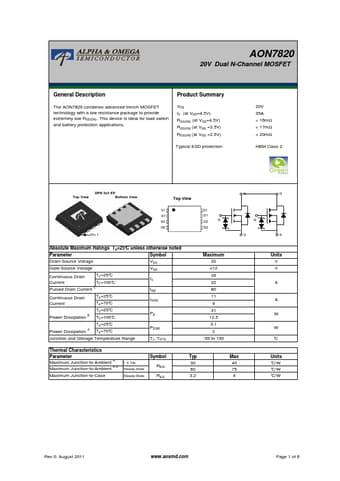

datasheet Preview Page 2 datasheet Preview Page 3
