AON7202

N-Channel 30V MOSFET

VBsemi

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Alpha & Omega Semiconductor	AON7202	MOSFET N-CH 30V 20A/40A 8DFN	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (223.64 KB)

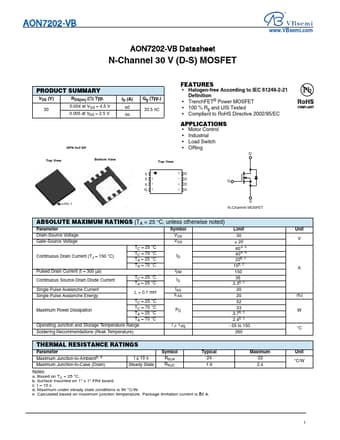

AON7202 Datasheet Preview — Preview of AON7202 Datasheet

Datasheet Details

Part number:

AON7202

Manufacturer:

VBsemi

File Size:

223.64 KB

Description:

N-channel 30v mosfet.
AON7202-VB AON7202-VB Datasheet N-Channel 30 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (.
V) 30 RDS(on) () Typ. 0.004 at VGS = 4.5 V 0.005 at VGS = 2.5 V ID (A) 60 50 DFN 3x3 EP Top Vie.

✔ AON7202 Features

Halogen-free According to IEC 61249-2-21 Definition
TrenchFET® Power MOSFET
100 % Rg and UIS Tested
Compliant to RoHS Directive 2002/95/EC APPLICATIONS
Motor C

✔ AON7202 Application

Motor Control
Industrial
Load Switch
ORing D Top View 1 8 2 7 G 3 6 4 5 Pin 1 S N-Channel
