AON7702B Datasheet, N-channel Mosfet, Alpha & Omega Semiconductors

30v n-channel mosfet

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Alpha & Omega Semiconductor	AON7702B	AON7702B	MOSFET N-CH 30V 13.5A/20A 8DFN	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (307.19 KB)

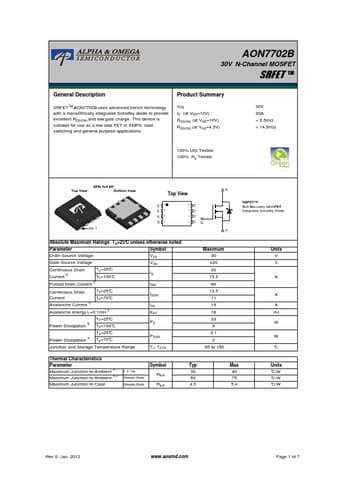

AON7702B Datasheet Preview Page 1 — Preview of AON7702B Datasheet

PDF File Details

Part number:

AON7702B

Manufacturer:

Alpha & Omega Semiconductors

File Size:

307.19 KB

Download:

📄 Download the AON7702B Datasheet PDF

Description:

30v n-channel mosfet.

Product Summary

SRFETTM AON7702B uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low gate charge.
This device is suitable for use as .

✔ AON7702B Application

VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 20A < 9.5mΩ < 14.5mΩ 100% UIS Tested
