AON7403, 30V P-Channel MOSFET

AON7403 30V P-Channel MOSFET General .
Product Summary The AON7403 uses advanced trench technology to provide excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating.

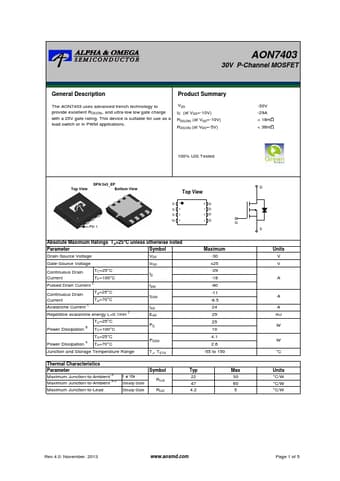

datasheet Preview Page 1 from Datasheet4u.com

AON7403_AlphaOmegaSemiconductors.pdf

AON7403 Datasheet Preview — Preview of AON7403 PDF

Datasheet Details

Part number:

AON7403

Manufacturer:

Alpha & Omega Semiconductors

File Size:

172.55 KB

Description:

30V P-Channel MOSFET

Applications

* VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS=-5V) -30V -29A < 18mW < 36mW 100% UIS Tested DFN 3x3_EP Top View Bottom View Pin 1 Top View S1 S2 S3 G4 8D 7D 6D 5D G Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-So
