AOZ1052PI, 4A Synchronous Buck Regulator

EZBuck™ 4A Synchronous Buck Regulator AOZ1052PI General .
The AOZ1052PI is a high efficiency, easy to use, 4A synchronous buck regulator.

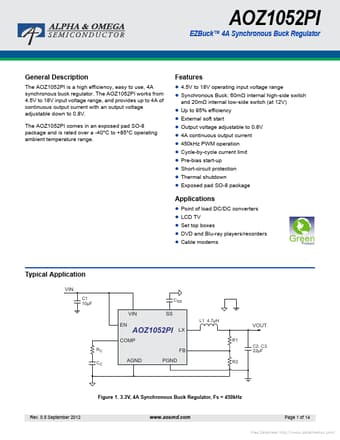

datasheet Preview Page 1 from Datasheet4u.com

AOZ1052PI_AlphaOmegaSemiconductors.pdf

AOZ1052PI Datasheet Preview — Preview of AOZ1052PI PDF

Datasheet Details

Part number:

AOZ1052PI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

727.21 KB

Description:

4A Synchronous Buck Regulator

Features

* 4.5V to 18V operating input voltage range
* Synchronous Buck: 60mΩ internal high-side switch and 20mΩ internal low-side switch (at 12V)
* Up to 95% efficiency
* External soft start
* Output voltage adjustable to 0.8V
* 4A continuous output current
* 450kHz PWM operatio

Applications

* Point of load DC/DC converters
* LCD TV
* Set top boxes
* DVD and Blu-ray players/recorders
* Cable modems Typical Application VIN C1 10µF CSS VIN EN SS L1 4.7µH AOZ1052PI LX R1 VOUT COMP RC CC FB AGND PGND R2 C2, C3 22µF Figure 1. 3.3V, 4A Synchronous Buck Regulator,
