AOZ1056 2A Simple Buck Regulator

AOZ1056 Description

EZBuck™ 2A Simple Buck Regulator AOZ1056 General .
The AOZ1056 is a high efficiency, simple to use, 2A buck regulator.

AOZ1056 Features

* 4.5V to 16V operating input voltage range 100mΩ internal PFET switch for high efficiency: up to 95% Internal Schottky Diode Externally soft start Output voltage adjustable to 0.8V 2A continuous output current Fixed 340kHz

AOZ1056 Applications

* Point of load DC/DC conversion PCIe graphics cards Set top boxes DVD drives and HDD LCD panels Cable modems Telecom/networking/datacom equipment Typical Application VIN C1 22µF Ceramic Css 82nF SS VIN U1 L1 6.8µH LX R1 FB PGND R2 C2, C3 22µF Ceramic VOU

📥 Download Datasheet

Preview of AOZ1056 PDF

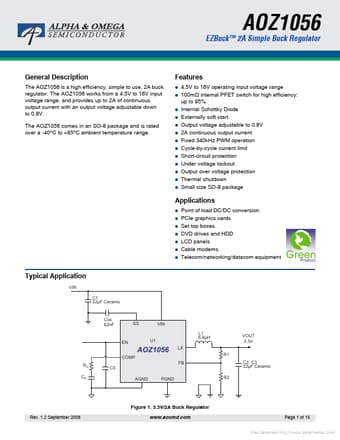

datasheet Preview Page 2 datasheet Preview Page 3
