AOZ1053PI 5A Synchronous Buck Regulator

AOZ1053PI Description

EZBuck™ 5A Synchronous Buck Regulator AOZ1053PI General .
The AOZ1053PI is a high efficiency, easy to use, 5A synchronous buck regulator.

AOZ1053PI Features

* 4.5V to 18V operating input voltage range
* Synchronous Buck: 55mΩ internal high-side switch and 19mΩ internal low-side switch (at 12V)
* Up to 95% efficiency
* External soft start
* Output voltage adjustable to 0.8V
* 5A continuous output current
* 450kHz PWM operatio

AOZ1053PI Applications

* Point of load DC/DC converters
* LCD TV
* Set top boxes
* DVD and Blu-ray players/recorders
* Cable modems Typical Application VIN C1 10µF CSS VIN EN SS L1 4.7µH AOZ1053PI LX R1 VOUT COMP RC CC FB AGND PGND R2 C2, C3 22µF Figure 1. 3.3V, 5A Synchronous Buck Regulator,

📥 Download Datasheet

Preview of AOZ1053PI PDF

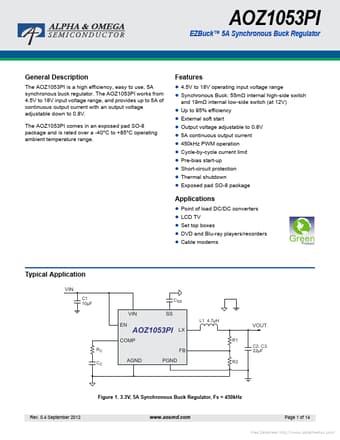

datasheet Preview Page 2 datasheet Preview Page 3
