AOZ1057 3A Simple Buck Regulator

AOZ1057 Description

EZBuck™ 3A Simple Buck Regulator AOZ1057 General .
The AOZ1057 is a high efficiency, simple to use, 3A buck regulator.

AOZ1057 Features

* 4.5V to 16V operating input voltage range 40mΩ internal PFET switch for high efficiency: up to 95% Externally soft start Output voltage adjustable to 0.8V 3A continuous output current Fixed 340kHz PWM operation Cycle-by-cycle current

AOZ1057 Applications

* Point of load DC/DC conversion PCIe graphics cards Set top boxes DVD drives and HDD LCD panels Cable modems Telecom/networking/datacom equipment Typical Application VIN C1 22µF Ceramic Css 82nF SS VIN U1 L1 6.8µH LX R1 FB PGND D1 R2 C2, C3 22µF Ceramic

📥 Download Datasheet

Preview of AOZ1057 PDF

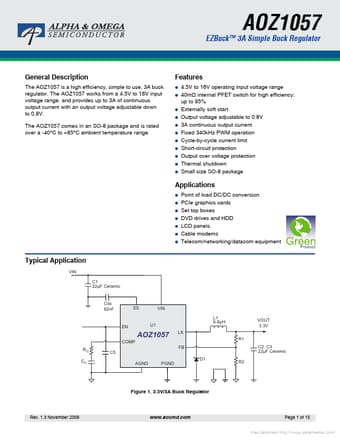

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AOZ1057
Manufacturer
Alpha & Omega Semiconductors
File Size
728.76 KB
Datasheet
AOZ1057_AlphaOmegaSemiconductors.pdf
Description
3A Simple Buck Regulator
