AOZ2380QI - 24V/35A Synchronous Regulator

Alpha & Omega Semiconductors

AOZ2380QI Datasheet Preview — Preview of AOZ2380QI PDF

Datasheet Details

Part number	AOZ2380QI
Manufacturer	Alpha & Omega Semiconductors
File Size	2.73 MB
Description	24V/35A Synchronous Regulator
Datasheet	AOZ2380QI-AlphaOmegaSemiconductors.pdf

AOZ2380QI Product details

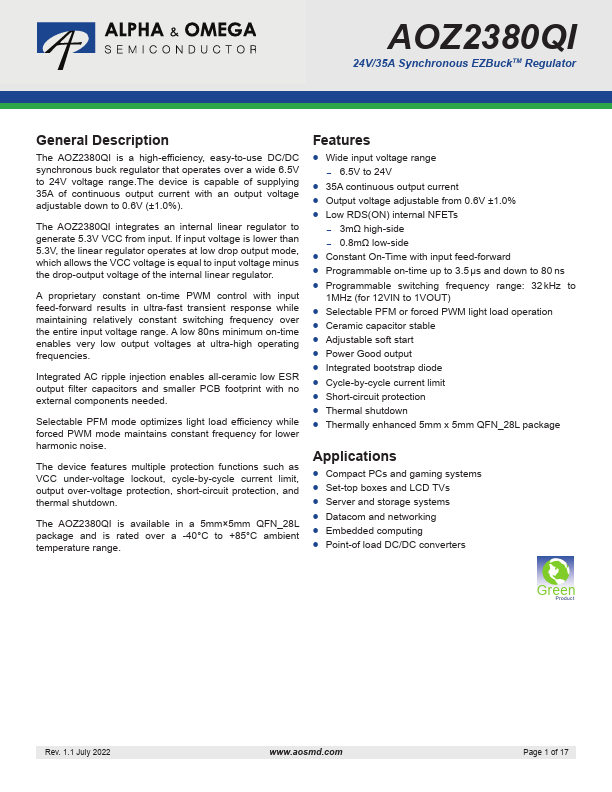

Description

The AOZ2380QI is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates over a wide 6.5V to 24V voltage range.The device is capable of supplying 35A of continuous output current with an output voltage adjustable down to 0.6V (±1.0%).

Features

multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2380QI is available in a 5mm×5mm QFN_28L package and is rated over a -40°C to +85°C ambient temperature range. Features.
Wide input voltage range - 6.5V to 24V.
35A continuous output current.
Output voltage adjustable from 0.6V ±1.0%.
Low RDS(ON) internal NFETs - 3mΩ high-side - 0.
