AOZ5116QI-03, High-Performance DrMOS Power Module

AOZ5116QI-03 High-Current, High-Performance DrMOS Power Module General .
The AOZ5116QI-03 is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

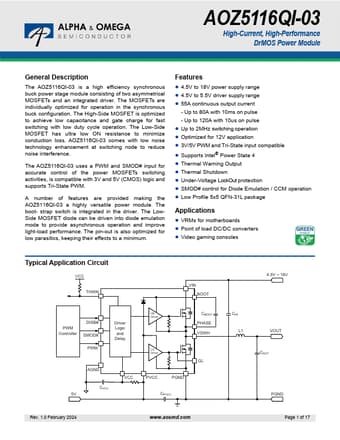

datasheet Preview Page 1 from Datasheet4u.com

AOZ5116QI-03-AlphaOmegaSemiconductors.pdf

AOZ5116QI-03 Datasheet Preview — Preview of AOZ5116QI-03 PDF

Datasheet Details

Part number:

AOZ5116QI-03

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.99 MB

Description:

High-Performance DrMOS Power Module

Features

* are provided making the AOZ5116QI-03 a highly versatile power module. The boot- strap switch is integrated in the driver. The LowSide MOSFET diode can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low paras

Applications

* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming consoles Typical Application Circuit VCC THWN VIN BOOT PWM Controller DISB# SMOD# PWM Driver Logic and Delay AGND CVCC 5V VCC HS Driver LS Driver PVCC PGND CPVCC CBOOT PHASE VSWH GL 4.5V ~ 18V CIN L1
