Datasheet Details
- Part number
- AOZ5117QI
- Manufacturer
- Alpha & Omega Semiconductors
- File Size
- 2.24 MB
- Datasheet
- AOZ5117QI-AlphaOmegaSemiconductors.pdf
- Description
- High-Performance DrMOS Power Module

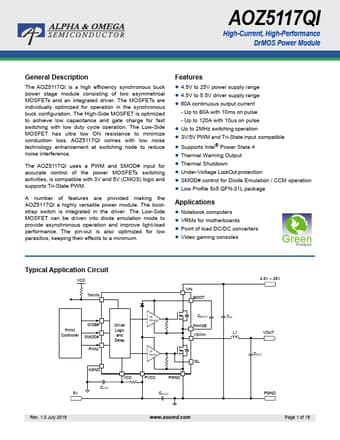

AOZ5117QI Description
AOZ5117QI High-Current, High-Performance DrMOS Power Module General .
The AOZ5117QI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.
AOZ5117QI Features
* are provided making the AOZ5117QI a highly versatile power module. The bootstrap switch is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low parasitics, kee
AOZ5117QI Applications
* Notebook computers
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming consoles
Typical Application Circuit
VCC
THWN
VIN BOOT
PWM Controller
DISB# SMOD#
PWM
Driver Logic
and Delay
AGND
CVCC 5V
VCC
HS Driver
LS Driver
PVCC
PGND
CPVCC
CBOOT PHASE VSW
