AOZ5116QI, High-Performance DrMOS Power Module

AOZ5116QI High-Current, High-Performance DrMOS Power Module General .
The AOZ5116QI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

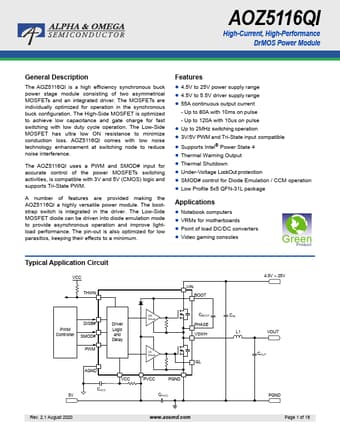

datasheet Preview Page 1 from Datasheet4u.com

AOZ5116QI-AlphaOmegaSemiconductors.pdf

AOZ5116QI Datasheet Preview — Preview of AOZ5116QI PDF

Datasheet Details

Part number:

AOZ5116QI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

2.18 MB

Description:

High-Performance DrMOS Power Module

Features

* are provided making the AOZ5116QI a highly versatile power module. The bootstrap switch is integrated in the driver. The Low-Side MOSFET diode can be driven into diode emulation mode to provide asynchronous operation and improve lightload performance. The pin-out is also optimized for low parasitics

Applications

* Notebook computers
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming consoles Typical Application Circuit VCC THWN VIN BOOT PWM Controller DISB# SMOD# PWM Driver Logic and Delay AGND CVCC 5V VCC HS Driver LS Driver PVCC PGND CPVCC CBOOT PHASE VSW
