AOZ53071QI, High-Performance DrMOS Power Module

AOZ53071QI High-Current, High-Performance DrMOS Power Module General .
The AOZ53071QI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

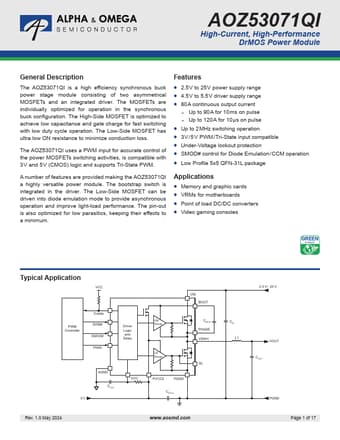

datasheet Preview Page 1 from Datasheet4u.com

AOZ53071QI-AlphaOmegaSemiconductors.pdf

AOZ53071QI Datasheet Preview — Preview of AOZ53071QI PDF

Datasheet Details

Part number:

AOZ53071QI

Manufacturer:

Alpha & Omega Semiconductors

File Size:

3.02 MB

Description:

High-Performance DrMOS Power Module

Features

* 2.5 V to 25 V power supply range
* 4.5 V to 5.5 V driver supply range
* 80 A continuous output current - Up to 90 A for 10 ms on pulse - Up to 120 A for 10 µs on pulse
* Up to 2 MHz switching operation
* 3 V / 5 V PWM / Tri-State input compatible
* U

Applications

* Memory and graphic cards
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming consoles Typical Application VCC PWM Controller THWN DISB# SMOD# PWM Driver Logic and Delay AGND CVCC 5V VCC VIN BOOT HS Driver LS Driver PVCC5 PGND CPVCC C
