AOZ8S530BLS-05 Datasheet - Alpha & Omega Semiconductors

AOZ8S530BLS-05 - 1-Channel Bidirectional High Surge TVS

The AOZ8S530BLS-05 is a single channel transient voltage suppressor designed to protect data lines or power rails from damaging ESD events.

This device incorporates a bidirectional TVS diode in a single package.

During transient conditions, the bidirectional diodes direct the transient to either the

AOZ8S530BLS-05 Features

* IEC 61000-4-2 Immunity - Air discharge: ±30kV - Contact discharge: ±30kV

* IEC61000-4-5 (Lightning, 8/20μs): 28A

* Low clamping voltage

* Reverse Working Voltage: 5.5V

* Capacitance: 15pF Applications

* DC Power Rails

* Low speed data lines

AOZ8S530BLS-05-AlphaOmegaSemiconductors.pdf

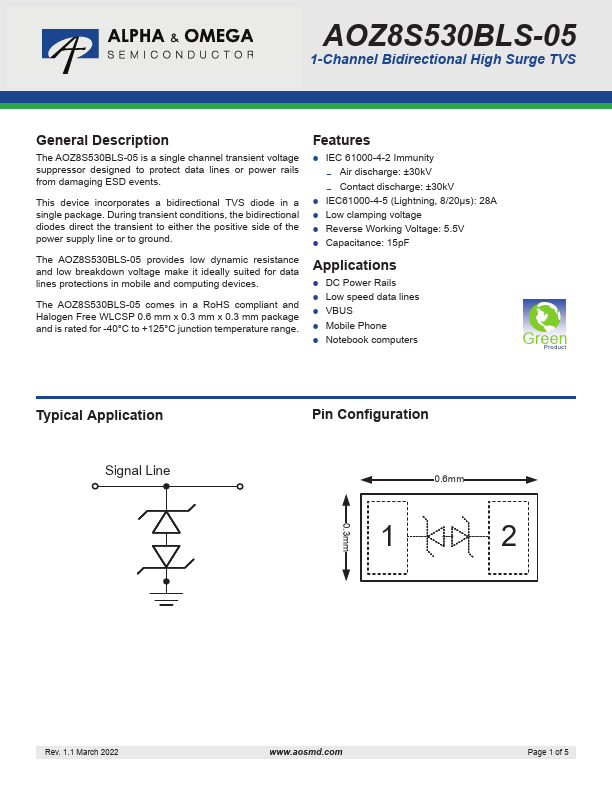

Preview of AOZ8S530BLS-05 PDF

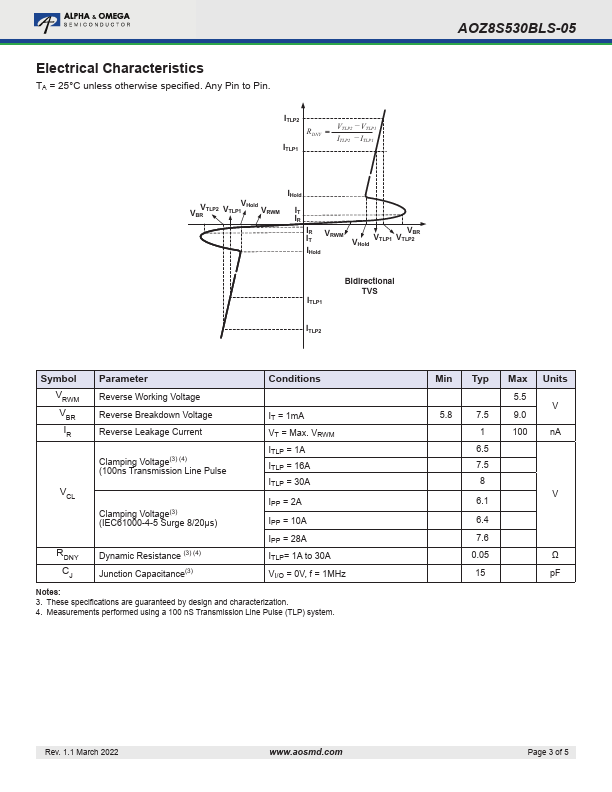

AOZ8S530BLS-05 Datasheet Preview Page 2 AOZ8S530BLS-05 Datasheet Preview Page 3

Datasheet Details

Part number:

AOZ8S530BLS-05

Manufacturer:

Alpha & Omega Semiconductors

File Size:

509.17 KB

Description:

1-channel bidirectional high surge tvs.
