AOZ8S530BLS-07

1-Channel Bidirectional High Surge TVS

Alpha & Omega Semiconductors

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Alpha & Omega Semiconductor	AOZ8S530BLS-07	TVS DIODE 7VWM 14.3VC 2WLCSP	DigiKey	0	150000 units	$0.03	🛒 Buy Now

Download Datasheet (568.91 KB)

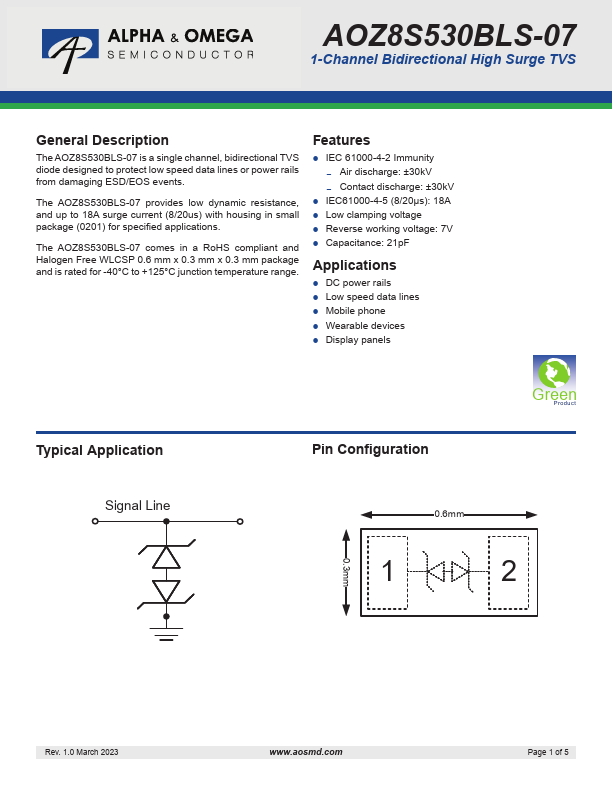

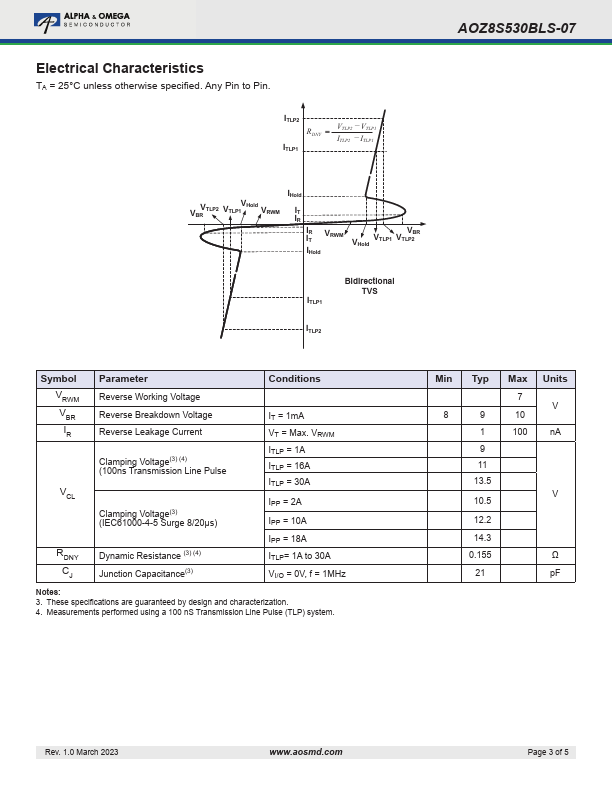

AOZ8S530BLS-07 Datasheet Preview — Preview of AOZ8S530BLS-07 Datasheet

Datasheet Details

Part number:

AOZ8S530BLS-07

Manufacturer:

Alpha & Omega Semiconductors

File Size:

568.91 KB

Description:

1-channel bidirectional high surge tvs.
AOZ8S530BLS-07 1-Channel Bidirectional High Surge TVS General Description The AOZ8S530BLS-07 is a s.
The AOZ8S530BLS-07 is a single channel, bidirectional TVS diode designed to protect low speed data l.

✔ AOZ8S530BLS-07 Features

IEC 61000-4-2 Immunity - Air discharge: ±30kV - Contact discharge: ±30kV
IEC61000-4-5 (8/20μs): 18A
Low clamping voltage
Reverse working voltage: 7V
Capacitance

✔ AOZ8S530BLS-07 Application

The AOZ8S530BLS-07 comes in a RoHS compliant and Halogen Free WLCSP 0.6 mm x 0.3 mm x 0.3 mm package and is
