AOZ8S530BLS-12 1-Channel Bidirectional High Surge TVS

Alpha & Omega Semiconductors

Description

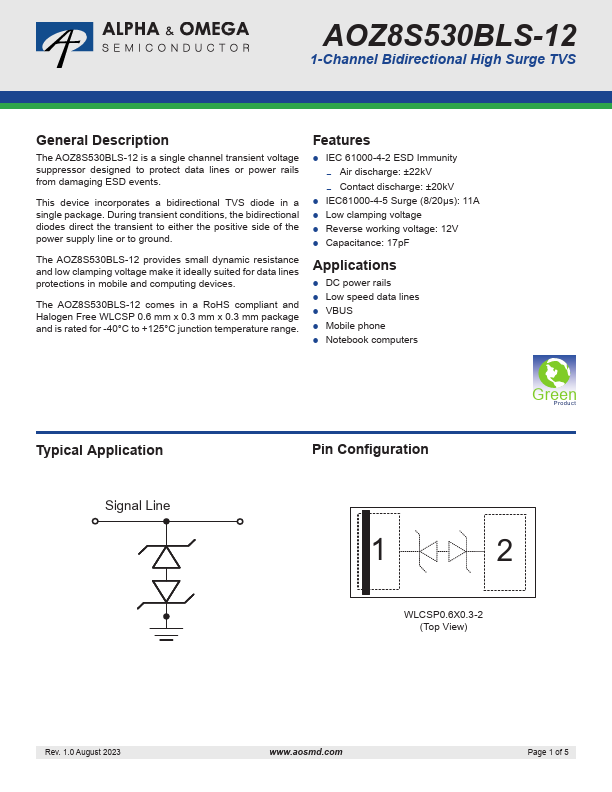

AOZ8S530BLS-12 1-Channel Bidirectional High Surge TVS General .
The AOZ8S530BLS-12 is a single channel transient voltage suppressor designed to protect data lines or power rails from damaging ESD events.

📥 Download Datasheet

AOZ8S530BLS-12 Datasheet Preview — Preview of AOZ8S530BLS-12 PDF

Datasheet Specifications

Part number: AOZ8S530BLS-12
Manufacturer: Alpha & Omega Semiconductors
File Size: 465.89 KB
Datasheet: AOZ8S530BLS-12-AlphaOmegaSemiconductors.pdf
Description: 1-Channel Bidirectional High Surge TVS

Features

* IEC 61000-4-2 ESD Immunity - Air discharge: ±22kV - Contact discharge: ±20kV
* IEC61000-4-5 Surge (8/20μs): 11A
* Low clamping voltage
* Reverse working voltage: 12V

Applications

* DC power rails
* Low speed data lines
* VBUS
* Mobile phone
* Notebook computers Typical Application Pin Configuration Green Product Signal Line 1 2 WLCSP0.6X0.3-2 (Top View) Rev. 1.0 August 2023 www. aosmd. com Page 1 of 5 AOZ8S530BLS-12 Ordering
