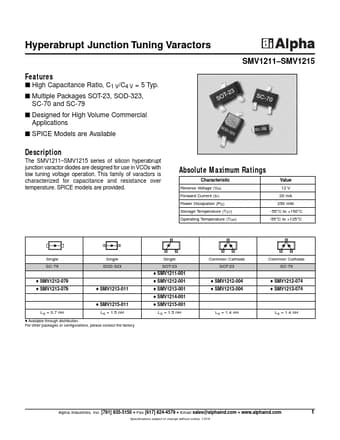

Hyperabrupt Junction Tuning Varactors SMV1211 *SMV1215 Features s High Capacitance Ratio, C1 V/C4 V = 5 Typ.

s Multiple Packages SOT-23, SOD-323, SC-70 and SC-79 s Designed for High Volume Commercial Applications s SPICE Models are Available Description The SMV1211 *SMV1215 series of

SMV-121.pdf

SMV1212-004 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMV1212-004, SMV. Please refer to the document for exact specifications by model.

SMV1212-004, SMV, Hyperabrupt Junction Tuning Varactors

The SMV1211 *SMV1215 series of silicon hyperabrupt junction varactor diodes are designed for use in VCOs with low tuning voltage operation.

This family of varactors is characterized for capacitance and resistance over temperature.

SPICE models are provided.

Absolute Maximum Ratings Character
