EPM7000B, EPM7032B - (EPM7000B) Programmable Logic Device

Altera Corporation

📥 Download Datasheet

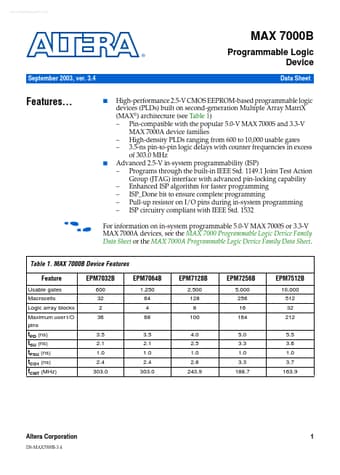

EPM7000B Datasheet Preview — This datasheet PDF includes multiple part numbers: EPM7000B, EPM7032B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	EPM7000B, EPM7032B
Manufacturer	Altera Corporation
File Size	0.96 MB
Description	(EPM7000B) Programmable Logic Device
Datasheet	EPM7032B_AlteraCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: EPM7000B, EPM7032B. Please refer to the document for exact specifications by model.

EPM7000B Product details

Description

MAX 7000B devices are high-density, high-performance devices based on Altera’s second-generation MAX architecture.

Features

High-performance 2.5-V CMOS EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX®) architecture (see Table 1).
Pin-compatible with the popular 5.0-V MAX 7000S and 3.3-V MAX 7000A device families.
High-density PLDs ranging from 600 to 10,000 usable gates.
3.5-ns pin-to-pin logic delays with counter frequencies in excess of 303.0 MHz Advanced 2.5-V in-system programmability (ISP).
Programs through th.
