EPM7128AE

Programmable Logic Device

EPM7128AE Features

* High-performance 3.3-V EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAX®) architecture (see Table 1) 3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action

EPM7128AE General Description

MAX 7000A (including MAX 7000AE) devices are high-density, highperformance devices based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROMbased MAX 7000A devices operate with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-t.

EPM7128AE Datasheet (943.86 KB)

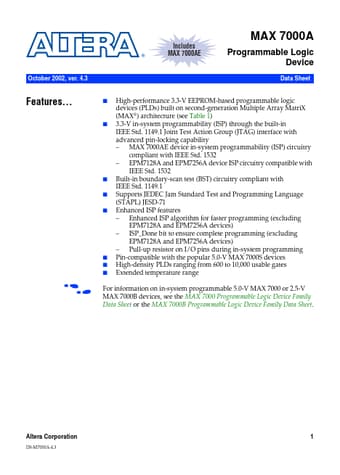

Preview of EPM7128AE PDF

Datasheet Details

Part number:

EPM7128AE

Manufacturer:

Altera Corporation

File Size:

943.86 KB

Description:

Programmable logic device.
