MBR30200PTG, MBR3040PTG - 30.0 AMPS. Schottky Barrier Rectifiers

MBR30200PTG Description

CREAT BY ART MBR3040PTG THRU MBR30200PTG 30.0 AMPS.Schottky Barrier Rectifiers TO-3P/TO-247AD .

MBR30200PTG Features

* Metal silicon junction, majority carrier conduction Plastic material used carriers Underwriters Laboratory Classification 94V-0 High surge capability Low power loss, high efficiency High current capability, low forward voltage drop For use in low voltage - high frequency inventers, free wheeling, an

MBR30200PTG Applications

* Guard-ring for overvoltage protection High temperature soldering guaranteed: 260℃/10 seconds/.17", (4.3mm) from case Green compound with suffix "G" on packing code & prefix "G" on datecode 1 2 3 1 3 2 Mechanical Data Case: JEDEC TO-3P/TO-247AD molded plastic Polarity: As marked Terminals: Pure ti

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR30200PTG, MBR3040PTG. Please refer to the document for exact specifications by model.

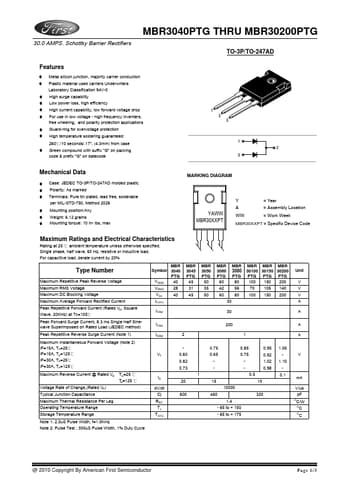

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR30200PTG, MBR3040PTG
Manufacturer
American First Semiconductor
File Size
1.12 MB
Datasheet
MBR3040PTG-AmericanFirstSemiconductor.pdf
Description
30.0 AMPS. Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR30200PTG, MBR3040PTG.
Please refer to the document for exact specifications by model.
