MBR30200CFSH SCHOTTKY BARRIER RECTIFIER

MBR30200CFSH SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 200 Volts Forward Current - 30 Amperes ITO-220AB 0.610(15.50) 0.571(14.50) 0.114(2.90) 0.098(2.50) 0.118(3.0) MIN. 0.413(10.50) 0.374(9.50) 0.161(4.10) MAX. 123 0.055(1.40) 0.039(1.00) 0.043(1.10) 0.019(0.50) 0.106(2.70) 0.087(2.20) 0.590(15.00) 0.488(12.40) 0.274(6.95) 0.226(5.75) 0.130(3.30) 0.091(2.30) 0.193(4.90) 0.165(4.20) 0.138(3.50) MAX. 0.031(0.80) 0.016(0.40) 123 Dimensions in inches and (millimeters) FEATUR.

MBR30200CFSH Features

* Halogen-free type

* Compliance to RoHS produc

* Low power loss & high efficiency

* High surge capability

* 30 Amperes total (15 Amperes per diode leg)

* High surge current capability

* Epitaxial construction

* Plastic Material-UL Recognition Flammability Classificat

MBR30200CFSH Datasheet (69.63 KB)

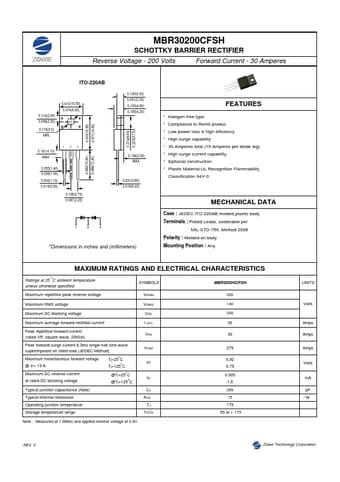

MBR30200CFSH Datasheet Preview — Preview of MBR30200CFSH PDF

Datasheet Details

Part number:

MBR30200CFSH

Manufacturer:

Zowie Technology

File Size:

69.63 KB

Description:

Schottky barrier rectifier.
