MBR30200FCT, MBR3040FCT - SCHOTTKY BARRIER RECTIFIERS

MBR30200FCT Description

MBR3040FCT SERIES SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volts CURRENT 30 Amperes .

MBR30200FCT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency.
* High current capability
* Guardring for overvolt

MBR30200FCT Applications

* In compliance with EU RoHS 2002/95/EC directives MECHANICAL DATA
* Case: ITO-220AB molded plastic
* Terminals: solder plated, solderable per MIL-STD-750, Method 2026
* Polarity: As marked.
* Mounting Position: Any
* Weight: 0.055 ounces, 1.5615 gram

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR30200FCT, MBR3040FCT. Please refer to the document for exact specifications by model.

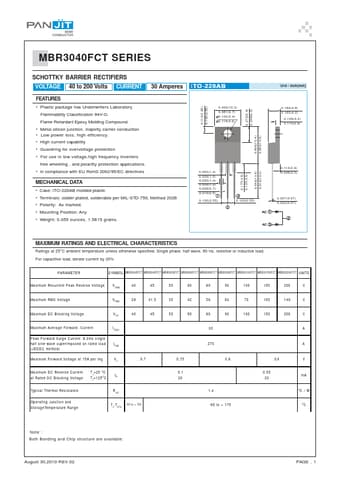

datasheet Preview Page 2

Datasheet Details

Part number
MBR30200FCT, MBR3040FCT
Manufacturer
Pan Jit International
File Size
42.88 KB
Datasheet
MBR3040FCT-PanJitInternational.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBR30200FCT, MBR3040FCT.
Please refer to the document for exact specifications by model.
