MBR3020CT - SCHOTTKY BARRIER RECTIFIERS

MBR3020CT Description

MBR3020CT~MBR30100CT SCHOTTKY BARRIER RECTIFIERS VOLTAGE 20 to 100 Volts CURRENT 30.0 Amperes .

MBR3020CT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O. Flame Retardant Epoxy Molding Compound.
* Exceeds environmental standards of MIL-S-19500/228
* Low power loss, high efficiency.
* Low forwrd voltge, high current capability
* High

MBR3020CT Applications

* In compliance with EU RoHS 2002/95/EC directives TO-220AB .419(10.66) .387(9.85) .139(3.55) MIN .269(6.85) .226(5.75) .624(15.87) .548(13.93) Unit : inch (mm) .196(5.00) .163(4.16) .054(1.39) .045(1.15) .177(4.5)MAX .50(12.7)MIN MECHANICAL DATA
* Case: TO-220AB Molded plastic

📥 Download Datasheet

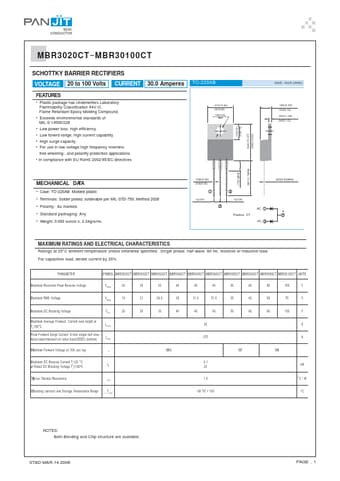

Preview of MBR3020CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBR3020CT
Manufacturer
Pan Jit International
File Size
129.24 KB
Datasheet
MBR3020CT-PanJitInternational.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
