MBR4040PTG - 40.0 AMPS. Schottky Barrier Rectifiers

MBR4040PTG Description

CREAT BY ART MBR4040PTG THRU MBR40200PTG 40.0 AMPS.Schottky Barrier Rectifiers TO-3P/TO-247AD .

MBR4040PTG Features

* Metal silicon junction, majority carrier conduction Plastic material used carriers Underwriters Laboratory Classification 94V-0 High surge capability Low power loss, high efficiency High current capability, low forward voltage drop For use in low voltage - high frequency inventers, free wheeling, an

MBR4040PTG Applications

* Guard-ring for overvoltage protection High temperature soldering guaranteed: 260℃/10 seconds/.17", (4.3mm) from case Green compound with suffix "G" on packing code & prefix "G" on datecode 1 2 3 1 3 2 Mechanical Data Case: JEDEC TO-3P/TO-247AD molded plastic Polarity: As marked Terminals: Pure ti

📥 Download Datasheet

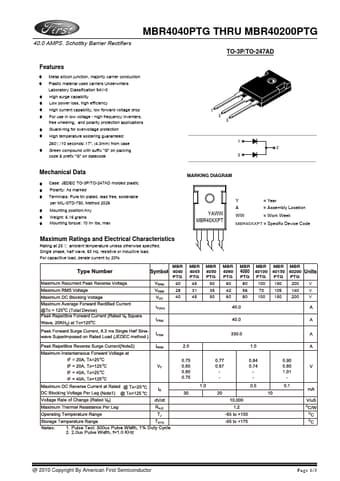

Preview of MBR4040PTG PDF
datasheet Preview Page 2 datasheet Preview Page 3
