MBR4040PT - Schottky Barrier Rectifier

Datasheet Summary

Features

  • Metal of silicon rectifier, majority carrier conducton.
  • Guard ring for transient protection.
  • Low power loss, high efficiency.
  • High current capability, low VF.
  • High surge capacity.
  • Plastic package has UL flammability classification 94V-0.
  • For use in low voltage, high frequence inverters, free wheeling, and polarity protection.

📥 Download Datasheet

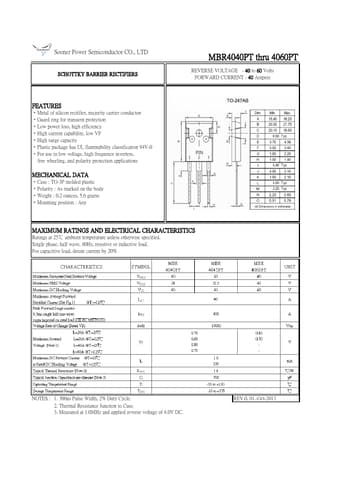

Datasheet preview – MBR4040PT

Datasheet Details

Part number MBR4040PT
Manufacturer Sooner
File Size 118.73 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet MBR4040PT Datasheet
Additional preview pages of the MBR4040PT datasheet.

📁 Similar Datasheet

  • MBR4040PT - 40A SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • MBR4040PT - SCHOTTKY BARRIER RECTIFIERS (Lite-On Technology Corporation)
  • MBR4040PT - Schottky Barrier Rectifiers (Sirectifier)
  • MBR4040PT - Schottky Rectifier (Luguang Electronic)
  • MBR4040PT - 40.0A SCHOTTKY BARRIER RECTIFIERS (WILLAS)
  • MBR4040PT - 40 AMPERES SCHOTTKY BARRIER RECTIFIERS (Pan Jit International)
  • MBR4040PTG - 40.0 AMPS. Schottky Barrier Rectifiers (American First Semiconductor)
  • MBR4040 - 40 Amp HT Power Schottky Barrier Rectifier (LTO-DMS)
  • MBR4040 - SCHOTTKY BARRIER RECTIFIERS (Motorola)
  • MBR4040 - 40Amp Schottky Barrier Rectifiers (SeCoS)
Other Datasheets by Sooner

Full PDF Text Transcription

Click to expand full text
Sooner Power Semiconductor CO., LTD SCHOTTKY BARRIER RECTIFIERS MBR4040PT thru 4060PT REVERSE VOLTAGE - 40 to 60 Volts FORWARD CURRENT - 40 Ampere FEATURES •Metal of silicon rectifier, majority carrier conducton •Guard ring for transient protection •Low power loss, high efficiency •High current capability, low VF •High surge capacity •Plastic package has UL flammability classification 94V-0 •For use in low voltage, high frequence inverters, free wheeling, and polarity protection applications MECHANICAL DATA •Case : TO-3P molded plastic •Polarity : As marked on the body •Weight : 0.2 ounces, 5.6 grams •Mounting position : Any MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified.
