MBR4040, MBR4040-LTO - 40 Amp HT Power Schottky Barrier Rectifier

MBR4040 Description

LTO-DMS MBR4040 thru MBR4060 40 Amp HT Power Schottky Barrier Rectifier 40 Volts to 60 Volts .

MBR4040 Features

* High Junction Temperature Capability
* Low Leakage Current and Low Forward Voltage Drop
* Low Power Loss and High Efficiency Maximum Ratings
* Operating Junction Temperature: 150°C
* Storage Temperature: - 55 °C to +175°C
* Per diode Thermal Resistance 2.2°C/W Junction to C

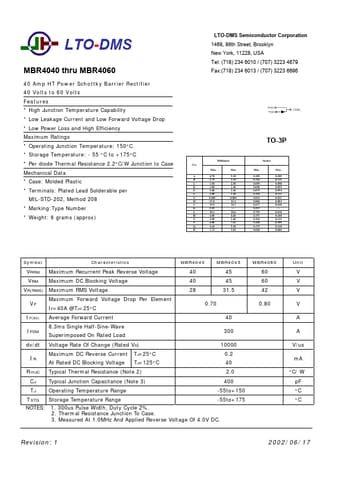

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR4040, MBR4040-LTO. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
MBR4040, MBR4040-LTO
Manufacturer
LTO-DMS
File Size
101.61 KB
Datasheet
MBR4040-LTO-DMS.pdf
Description
40 Amp HT Power Schottky Barrier Rectifier
Note
This datasheet PDF includes multiple part numbers: MBR4040, MBR4040-LTO.
Please refer to the document for exact specifications by model.
