SGC-4F - SOLID STATE RELAY

American Zettler

📥 Download Datasheet

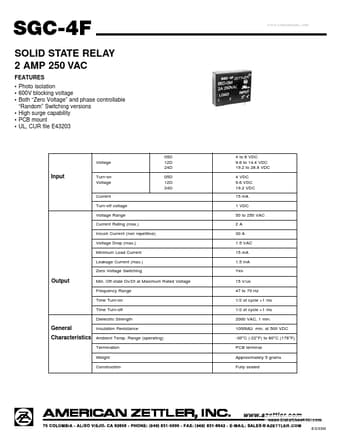

SGC-4F Datasheet Preview — Preview of SGC-4F PDF

datasheet Preview Page 2

Datasheet Details

Part number	SGC-4F
Manufacturer	American Zettler
File Size	92.02 KB
Description	SOLID STATE RELAY
Datasheet	SGC-4F_AmericanZettler.pdf

SGC-4F Product details

Features

Photo isolation.
600V blocking voltage.
Both “Zero Voltage” and phase controllable “Random” Switching versions.
High surge capability.
PCB mount.
UL, CUR file E43203 www. DataSheet4U. com Voltage 05D 12D 24D 05D 12D 24D 4 to 6 VDC 9.6 to 14.4 VDC 19.2 to 28.8 VDC 4 VDC 9.6 VDC 19.2 VDC 15 mA 1 VDC 50 to 250 VAC 2A 30 A 1.5 VAC 15 mA 1.5 mA Yes 15 V/us 47 to 70 Hz 1/2 of cycle +1 ms 1/2 of cycle +1 ms 2000 VAC, 1 min. 1000MΩ min. at 500 VDC.
