SGC-4486Z

Silicon Germanium Cascadable Gain Block

SGC-4486Z Features

* Single Fixed 3V Supply

* No Dropping Resistor Required

* Patented Self-Bias Circuitry

* P1dB = 12.7 dBm at 1950 MHz

* OIP3 = 27.5 dBm at 1950 MHz

* Robust 1000V ESD, Class 1C HBM Applications

* PA Driver Amplifier

* Cellular, PCS, GSM

SGC-4486Z General Description

Sirenza Microdevices’ SGC-4486Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V supply, the SGC-448.

SGC-4486Z Datasheet (281.25 KB)

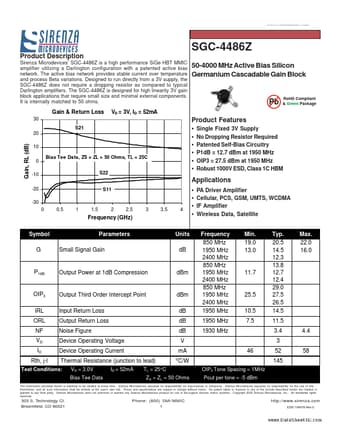

Preview of SGC-4486Z PDF

Datasheet Details

Part number:

SGC-4486Z

Manufacturer:

SIRENZA MICRODEVICES

File Size:

281.25 KB

Description:

Silicon germanium cascadable gain block.
