SGC0301AU, SGC0301AU-GOOD, Surface Mount Glass Passivated Rectifier

SGC0301AU thru SGC0307AU Surface Mount Glass Passivated Rectifier Reverse Voltage 50~1000V Forward Current 3A .

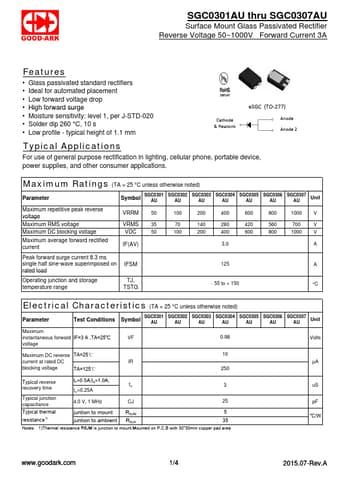

datasheet Preview Page 1 from Datasheet4u.com

SGC0301AU-GOOD-ARK.pdf

SGC0301AU Datasheet Preview — This datasheet PDF includes multiple part numbers: SGC0301AU, SGC0301AU-GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SGC0301AU, SGC0301AU-GOOD

Manufacturer:

GOOD-ARK

File Size:

203.25 KB

Description:

Surface Mount Glass Passivated Rectifier

Note:

This datasheet PDF includes multiple part numbers: SGC0301AU, SGC0301AU-GOOD.
Please refer to the document for exact specifications by model.

Features

* Glass passivated standard rectifiers
* Ideal for automated placement
* Low forward voltage drop
* High forward surge
* Moisture sensitivity: level 1, per J-STD-020
* Solder dip 260 °C, 10 s
* Low profile - typical height of 1.1 mm Cathode &

Applications

* For use of general purpose rectification in lighting, cellular phone, portable device, power supplies, and other consumer applications. Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum aver
