SGC0304U, SGC0303U-GOOD, Surface Mount Glass Passivated superfast recovery Rectifier

SGC0303U thru SGC0306U Surface Mount Glass Passivated superfast recovery Rectifier Reverse Voltage 200~800V Forward Current 3A .

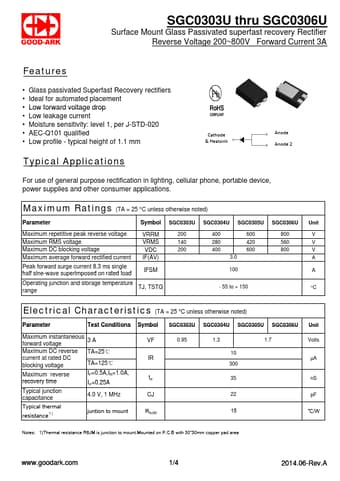

datasheet Preview Page 1 from Datasheet4u.com

SGC0303U-GOOD-ARK.pdf

SGC0304U Datasheet Preview — This datasheet PDF includes multiple part numbers: SGC0304U, SGC0303U-GOOD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SGC0304U, SGC0303U-GOOD

Manufacturer:

GOOD-ARK

File Size:

192.75 KB

Description:

Surface Mount Glass Passivated superfast recovery Rectifier

Note:

This datasheet PDF includes multiple part numbers: SGC0304U, SGC0303U-GOOD.
Please refer to the document for exact specifications by model.

Features

* Glass passivated Superfast Recovery rectifiers
* Ideal for automated placement
* Low forward voltage drop
* Low leakage current
* Moisture sensitivity: level 1, per J-STD-020
* AEC-Q101 qualified
* Low profile - typical height of 1.1 mm Typi

Applications

* Cathode & Heatsink Anode Anode 2 For use of general purpose rectification in lighting, cellular phone, portable device, power supplies and other consumer applications. Maximum Ratings (TA = 25 °C unless otherwise noted) Parameter Symbol SGC0303U SGC0304U SGC0305U SGC0306U Maximum repetitive
