SGC0304AU, SGC0301AU-GOOD - Surface Mount Glass Passivated Rectifier

GOOD-ARK

📥 Download Datasheet

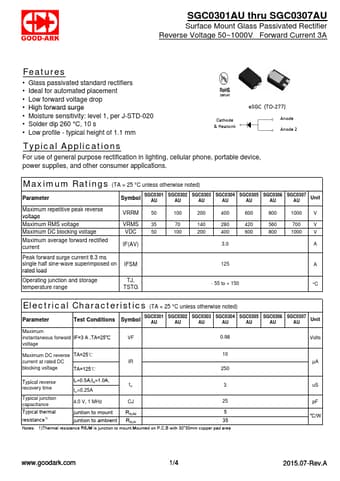

SGC0304AU Datasheet Preview — This datasheet PDF includes multiple part numbers: SGC0304AU, SGC0301AU-GOOD. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SGC0304AU, SGC0301AU-GOOD
Manufacturer	GOOD-ARK
File Size	203.25 KB
Description	Surface Mount Glass Passivated Rectifier
Datasheet	SGC0301AU-GOOD-ARK.pdf
Note	This datasheet PDF includes multiple part numbers: SGC0304AU, SGC0301AU-GOOD. Please refer to the document for exact specifications by model.

SGC0304AU Product details

Features

Glass passivated standard rectifiers.
Ideal for automated placement.
Low forward voltage drop.
High forward surge.
Moisture sensitivity: level 1, per J-STD-020.
Solder dip 260 °C, 10 s.
Low profile - typical height of 1.1 mm Cathode & Heatsink eSGC (TO‐277) Anode Anode 2 Typical.
