SGC-2463Z

Silicon Germanium Cascadable Gain Block

SGC-2463Z Features

* Single Fixed 3V Supply

* Supply Dropping Resistor not required

* Patented Self-Bias Circuitry

* P1dB = 10.1 dBm at 1950 MHz

* IP3 = 23.4 dBm at 1950 MHz

* Robust 1000V ESD, Class 1C HBM Applications

* PA Driver Amplifier

* Cellular, P

SGC-2463Z General Description

Sirenza Microdevices’ SGC-2463Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V supply, the SGC-246.

SGC-2463Z Datasheet (331.34 KB)

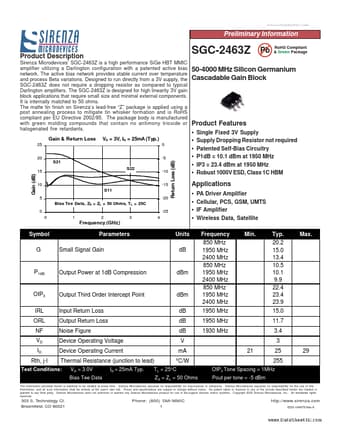

Preview of SGC-2463Z PDF

Datasheet Details

Part number:

SGC-2463Z

Manufacturer:

SIRENZA MICRODEVICES

File Size:

331.34 KB

Description:

Silicon germanium cascadable gain block.
