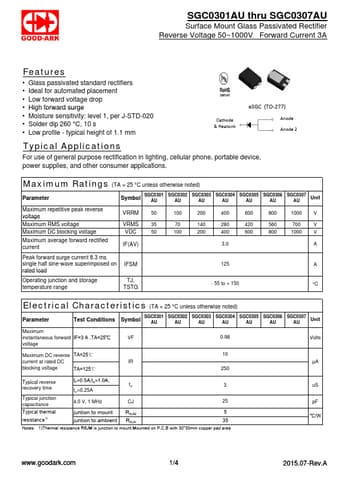

SGC0302AU

Surface Mount Glass Passivated Rectifier

GOOD-ARK

* Glass passivated standard rectifiers

* Ideal for automated placement

* Low forward voltage drop

* High forward surge

* Moisture sensitivity: level 1, per J-STD-020

* Solder dip 260 °C, 10 s

* Low profile - typical height of 1.1 mm Cathode &

SGC0302AU

GOOD-ARK

203.25 KB

Surface mount glass passivated rectifier.
