SGC-4463Z, Silicon Germanium Cascadable Gain Block

www.DataSheet4U.com SGC-4463Z Product .
Sirenza Microdevices’ SGC-4463Z is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with a patented active bias network.

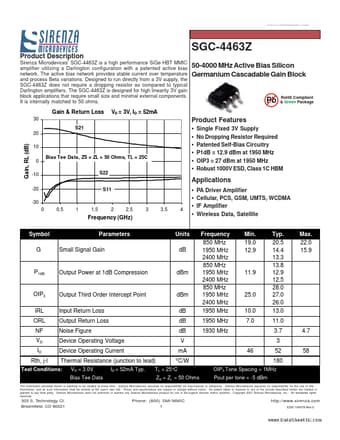

datasheet Preview Page 1 from Datasheet4u.com

SGC-4463Z_SIRENZAMICRODEVICES.pdf

SGC-4463Z Datasheet Preview — Preview of SGC-4463Z PDF

Datasheet Details

Part number:

SGC-4463Z

Manufacturer:

SIRENZA MICRODEVICES

File Size:

307.75 KB

Description:

Silicon Germanium Cascadable Gain Block

Features

* Single Fixed 3V Supply
* No Dropping Resistor Required
* Patented Self-Bias Circuitry
* P1dB = 12.9 dBm at 1950 MHz
* OIP3 = 27 dBm at 1950 MHz

Applications

* that require small size and minimal external components. It is internally matched to 50 ohms. 50-4000 MHz Active Bias Silicon Germanium Cascadable Gain Block RoHS Compliant & Green Package Pb Gain & Return Loss 30 S21 20 VD = 3V, ID = 52mA Gain, RL (dB) 10 0 -10 -20 -30 0 0.5 1 1.5 2 2.5 3 3.5
