BPC10M6X2S200, LDMOS 433 MHz power module

BPC10M6X2S200 LDMOS 433 MHz power module Rev.1 * 29 March 2018 Product data sheet 1.Product profile 1.1 General .
200 W LDMOS power module intended for plasma lighting, RF cooking, defrosting and ISM applications driving at the frequency of 433 MHz.

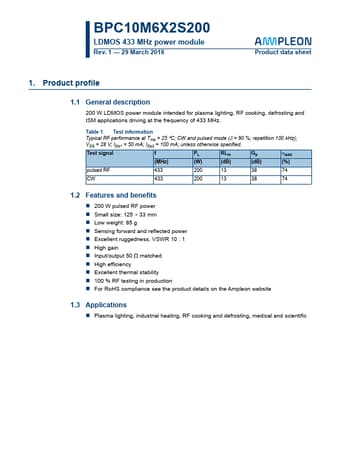

datasheet Preview Page 1 from Datasheet4u.com

BPC10M6X2S200-Ampleon.pdf

BPC10M6X2S200 Datasheet Preview — Preview of BPC10M6X2S200 PDF

Datasheet Details

Part number:

BPC10M6X2S200

Manufacturer:

Ampleon

File Size:

386.39 KB

Description:

LDMOS 433 MHz power module

Features

* 200 W pulsed RF power
* Small size: 125  33 mm
* Low weight: 85 g
* Sensing forward and reflected power
* Excellent ruggedness, VSWR 10 : 1
* High gain
* Input/output 50  matched
* High efficiency
* Excellent thermal stability
* 100 % RF testing in product

Applications

* driving at the frequency of 433 MHz. Table 1. Test information Typical RF performance at Tmb = 25 C; CW and pulsed mode ( = 90 %; repetition 100 kHz); VDS = 28 V; IDq1 = 50 mA; IDq2 = 100 mA; unless otherwise specified. Test signal f (MHz) PL RLin (W) (dB) Gp (dB) add (%) pulsed RF 433 20
