BPC2425M9X250, Power LDMOS module

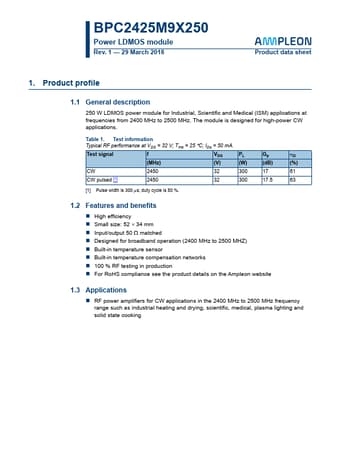

BPC2425M9X250 Power LDMOS module Rev.1 * 29 March 2018 Product data sheet 1.Product profile 1.1 General .
250 W LDMOS power module for Industrial, Scientific and Medical (ISM) applications at frequencies from 2400 MHz to 2500 MHz.

datasheet Preview Page 1 from Datasheet4u.com

BPC2425M9X250-Ampleon.pdf

BPC2425M9X250 Datasheet Preview — Preview of BPC2425M9X250 PDF

Datasheet Details

Part number:

BPC2425M9X250

Manufacturer:

Ampleon

File Size:

349.48 KB

Description:

Power LDMOS module

Features

* High efficiency
* Small size: 52  34 mm
* Input/output 50  matched
* Designed for broadband operation (2400 MHz to 2500 MHZ)
* Built-in temperature sensor
* Built-in temperature compensation networks
* 100 % RF testing in production
* For RoHS compliance see the p

Applications

* at frequencies from 2400 MHz to 2500 MHz. The module is designed for high-power CW applications. Table 1. Test information Typical RF performance at VDS = 32 V; Tmb = 25 C; IDq = 50 mA. Test signal f VDS (MHz) (V) CW 2450 32 CW pulsed [1] 2450 32 PL (W) 300 300 Gp (dB) 17 17.5 D (%)
