BPC2425M7X60 - Power LDMOS module

BPC2425M7X60 Description

BPC2425M7X60 Power LDMOS module Rev.1 * 29 March 2018 Product data sheet 1.Product profile 1.1 General .
60 W LDMOS power module with excellent gain flatness for Industrial, Scientific and Medical (ISM) applications at frequencies from 2400 MHz to 2500 MH.

BPC2425M7X60 Features

* Flat gain
* Small size: 72  34 mm
* Input/output 50  matched
* Balanced configuration
* Designed for broadband operation (2400 MHz to 2500 MHZ)
* Built-in temperature sensor
* Built-in temperature compensation in biasing networks
* 100 % RF testing in production

BPC2425M7X60 Applications

* at frequencies from 2400 MHz to 2500 MHz. The module is designed as a dual stage high gain medium power amplifier for CW and pulsed applications. Table 1. Test information Typical RF performance at VDS = 32 V; Tmb = 25 C; IDq1(A) = IDq1(B) = 25 mA; IDq2(A) = IDq2(B) = 50 mA. Test signal f VDS

📥 Download Datasheet

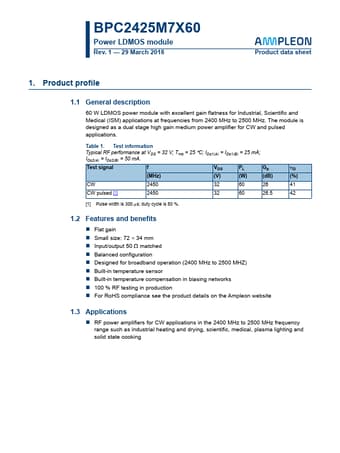

Preview of BPC2425M7X60 PDF
